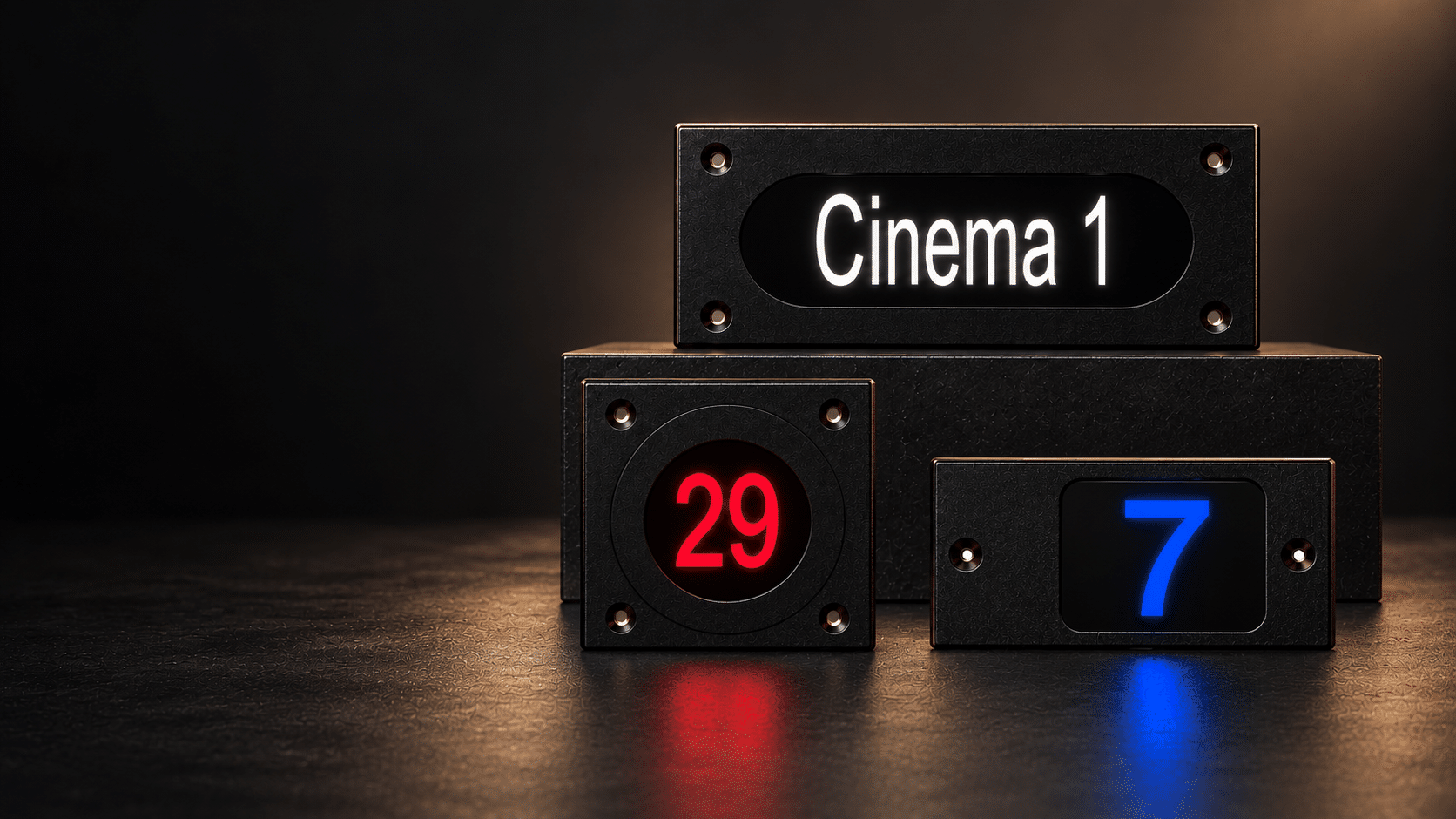

Illuminated seat row indicators. SRA, SRB and SRC for clear visitor orientation.
Illuminated row numbers and custom markings help visitors identify the correct seating area in low ambient light. Three formats cover different mounting surfaces, available space and information requirements.
The indicator should be visible without becoming a distraction.
Seat row indicators are a small part of an auditorium, but they sit directly within the visitor journey. Format, light colour, brightness, mounting position and the surrounding step lighting should therefore work together.
A simple row number needs less space than a direction arrow, pictogram or longer custom marking.
Depending on the model, the indicator can be integrated with a step profile or mounted independently on a suitable surface.
Light colour and brightness can be selected to complement the surrounding step-lighting concept.
Which format fits the seating area?
You do not need to select a model before contacting us. Start with the available mounting surface and the information that needs to be displayed.
SRA
The compact square format for row numbers or short markings where a symmetrical display works best.
SRB
A lower rectangular format for restricted mounting heights and integration with the SLR step profile.
SRC
The largest format for bigger numbers, arrows, pictograms, logos or longer custom markings.
Three different proportions.
SRC provides the largest information area. SRA is square, while SRB is lower and slimmer. The illustration shows the front-face proportions using the same scale.
Not sure which format fits? A photograph of the mounting surface plus the required marking is enough for an initial recommendation.
Send the mounting detailIntegrated with a step profile or mounted separately.
SRA can be integrated with SL1, SL2 or SLD. SRB can be integrated with SLR. All three models can also be mounted independently on suitable floor, seating or wall surfaces.
SRA can be integrated with SL1, SL2 or SLD where the profile and mounting position suit the project.
View SL1
The slim SRB format can be integrated with the SLR step profile.
View SLR
SRA, SRB and SRC can be mounted separately on suitable floor, seating or wall surfaces. Fixing and cable routing are coordinated with the project.
Dimensions and electrical data at a glance.
| Feature | SRA | SRB | SRC |
|---|---|---|---|
| Format | Square | Small rectangular | Large rectangular |
| Width × height × depth | 60 × 60 × 7.3 mm | 67 × 36.8 × 5 mm | 120 × 60 × 4 mm |
| Power consumption | 0.3 W | 0.3 W | 0.5 W |
| Operating voltage | 12 / 24 V DC | 12 / 24 V DC | 12 / 24 V DC |
| Typical marking | Numbers and letters | Numbers and compact symbols | Numbers, pictograms, arrows and logos |
| Main strength | Compact and symmetrical | Slim and easy to integrate | Large visible information area |
| Step-profile integration | SL1, SL2 or SLD | SLR | Not intended |
| Separate installation | Suitable surfaces | Suitable surfaces | Suitable surfaces |
Marking, light and connection coordinated with the project.
Seat row indicators and step lighting work best when they are treated as one visitor-orientation system. Marking, brightness, voltage, cabling and mounting are therefore coordinated together.
One coordinated visual language for steps and seating.
When seat row indicators are combined with LED step lighting, we can coordinate mounting, voltage, light colour and cable routes as part of the same project package.
Common questions about illuminated seat row indicators.
Which seat row indicator should I choose?
SRA is suited to compact square mounting areas. SRB is suited to smaller rectangular markings and integration with the SLR step profile. SRC provides more surface area for larger numbers, pictograms, direction arrows or logos.
Can the indicators be customised?
Yes. Numbers, letters, pictograms and, depending on the model, direction arrows or project-specific logos can be configured for the project.
Are SRA, SRB and SRC available for 12 V and 24 V DC?
Yes. All three models can be configured for 12 V DC or 24 V DC depending on the project.
Can the indicators be mounted on LED step profiles?
SRA can optionally be integrated with SL1, SL2 and SLD. SRB can be integrated with SLR. SRC is intended for separate mounting rather than integration with an LED step profile.
Can the indicators also be mounted separately?
Yes. SRA, SRB and SRC can all be installed independently on suitable floor, seating or wall surfaces. Fixing and cable routing are coordinated with the project.
Which light colours are available?
Several white tones and project-specific colours are possible. The final selection depends on the model, desired room effect and surrounding step-lighting system.
What information is useful for a quotation?
A seating plan, approximate quantity, required marking, photographs and dimensions of the mounting area are useful. Information on voltage and preferred light colour can also be included if already known.
Send the seating plan or a photograph. We will identify the suitable format.
An approximate quantity or a photograph of the mounting surface is enough to start. If the final numbering or marking is already defined, include it with the enquiry.
